Compressor Source 21 CFM Refrigerated Air Dryer for 5 HP Air Compressors 110V CSRD-20
Product details
| Management number | 218666555 | Release Date | 2026/05/03 | List Price | US$379.60 | Model Number | 218666555 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

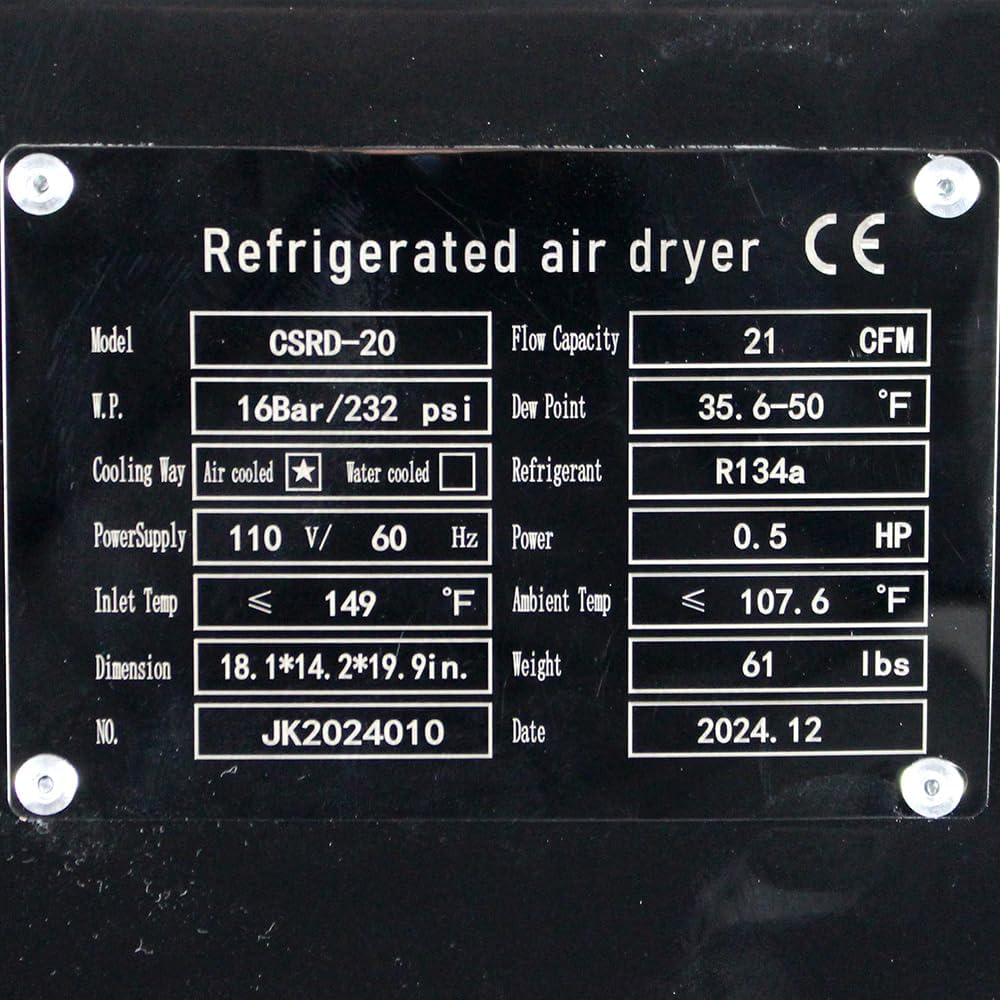

This Compressor-Source Refrigerated Air Dryer is the perfect solution for getting moisture out of your air and keeping your tools running smoothly. This dryer uses R134a refrigerant, which is highly effective at keeping the system cool and is more environmentally friendly. The dryer is designed to be used on compressors that can deliver up to 21 CFM, which are typically 5 HP air compressors, but it can be used on smaller compressors if desired. Also included on this dryer is an automatic timer drain, an electronic display that displays the dew point and error codes, and a 1/2” NPT inlet and outlet for an easy hookup with your compressor. Please see below for more features and specifications. Features and Specifications Model Number: CSRD-20 Max Working Pressure: 232 PSI Voltage: 110V Inlet Temperature: <149°F Max Flow Capacity: 21 CFM Dew Point: 35.6°F – 50°F Refrigerant: R134a Power: 0.5 HP Max Ambient Operating Temperature: <107.6°F Weight: 61 LBS Dimensions: 18.1” x 14.2” x 19.9”
- Max Working Pressure: 232 PSI
- Voltage: 110V
- Inlet Temperature: <149°F
- Refrigerant: R134a
- Dimensions: 18.1” x 14.2” x 19.9”
| UPC | 684659153357 |
|---|---|
| Color | Black |
| Voltage | 110 Volts (AC) |
| Brand Name | compressor-source |
| Model Name | CSRD-20 |
| Unit Count | 1.0 Count |
| Item Weight | 61 Pounds |
| Manufacturer | COMPRESSOR SOURCE |
| Model Number | CSRD-20 |
| Power Source | Corded Electric |
| Maximum Power | 5 Horsepower |
| Maximum Pressure | 232 Pound per Square Inch |
| Motor Horsepower | 5 Horsepower |
| Air Flow Capacity | 21 Cubic Feet Per Minute |
| Maximum Horsepower | 5 Horsepower |
| Additional Features | Automatic Timer Drain |
| Included Components | 1 Air Dryer |
| Manufacturer Part Number | CSRD-20 |
| Item Dimensions L x W x H | 18.1"L x 14.2"W x 19.9"H |
| Recommended Uses For Product | Industrial |
