Happybuy Rotary Welding Positioner 50KG, 0-90° Welding Positioning Turntable Table 0.5-6RPM 120W, with 12.4 Inch 3-Jaw Lathe Chuck & Welding Torch Stand Holder for Cutting, Grinding, Assembly, Testing

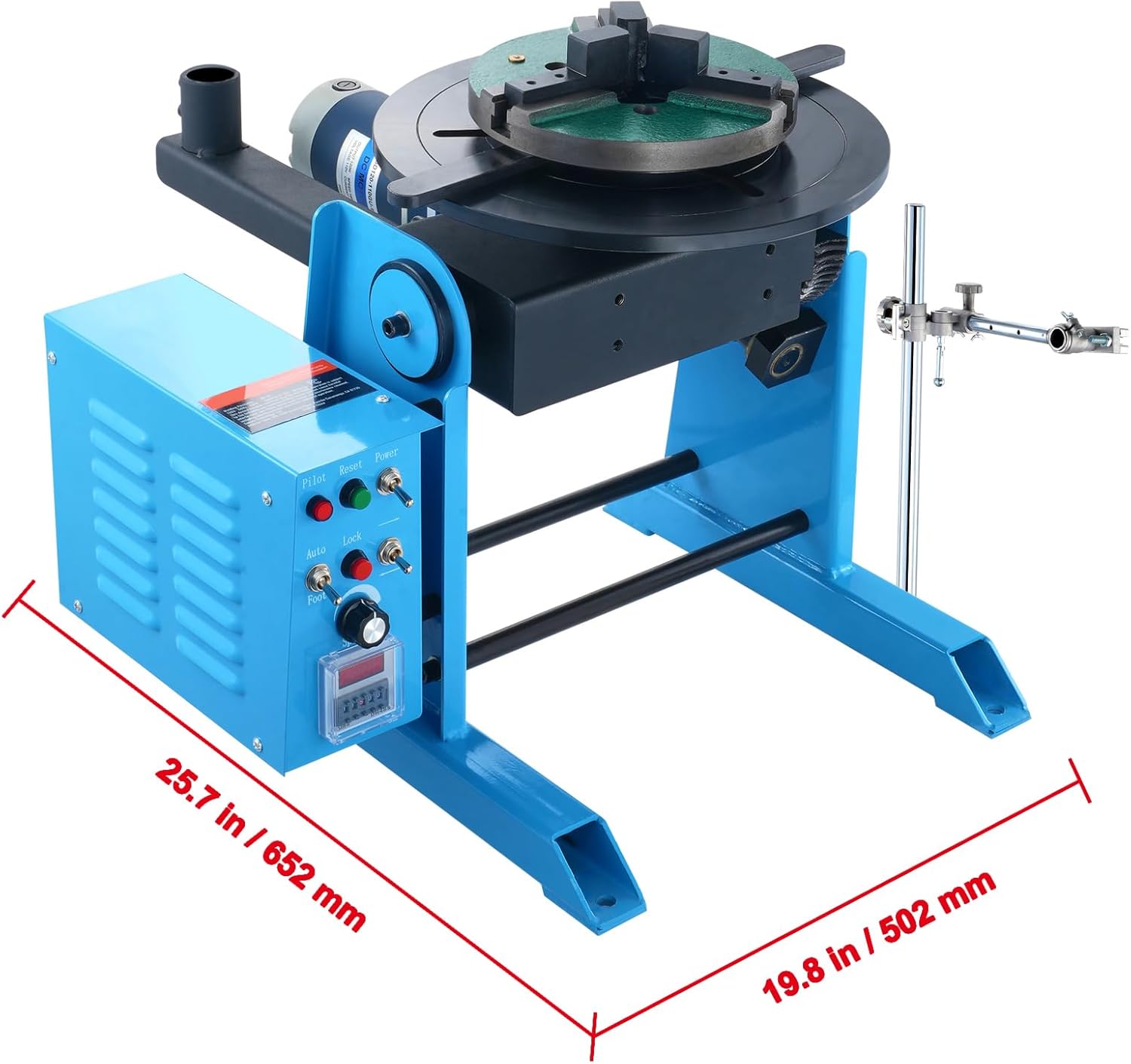

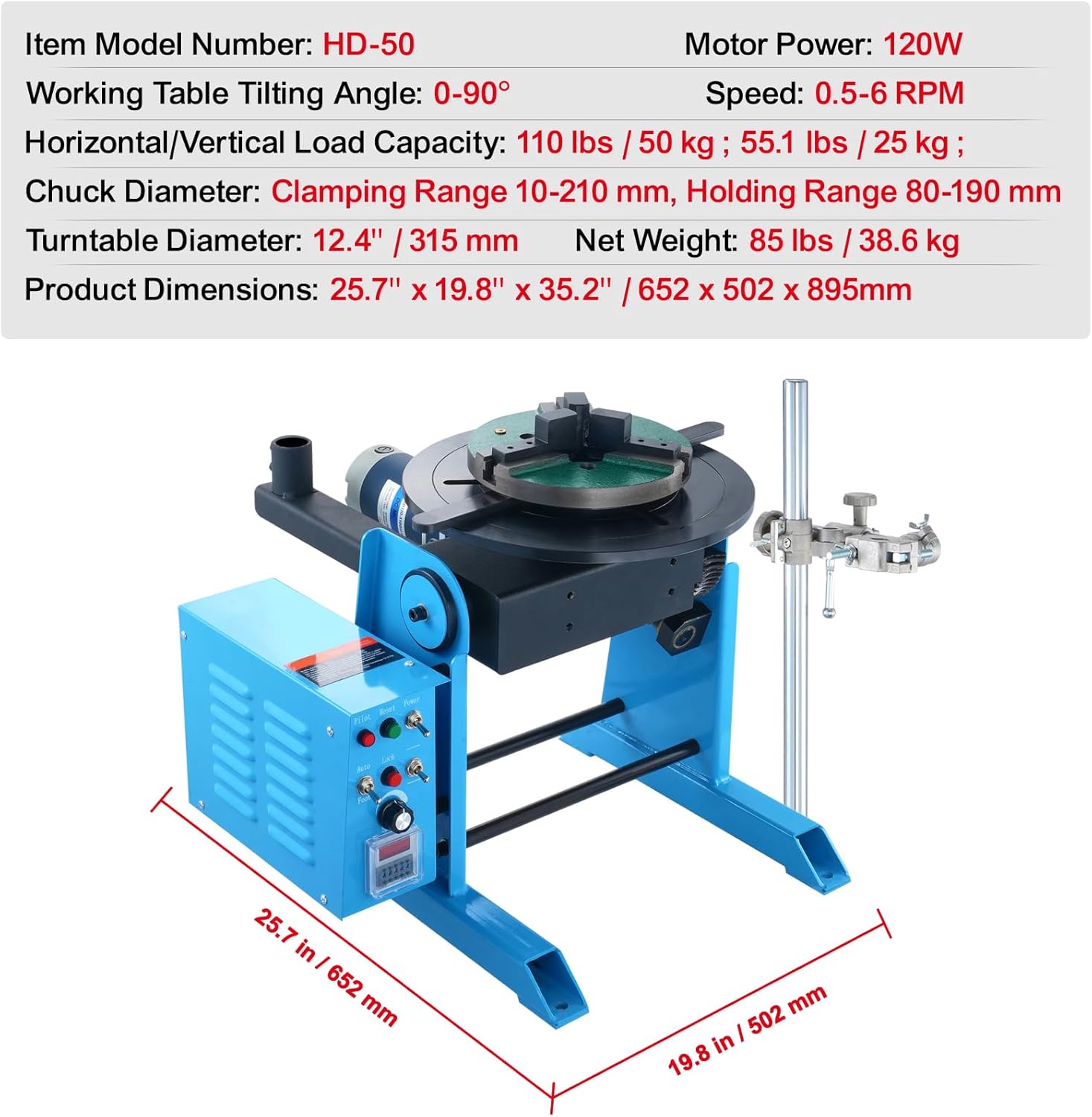

"Item Model Number: HD-50 Motor Power: 120W Speed: 0.5-6 RPM Horizontal/Vertical Load Capacity: 55lbs/25 kg ; 110lbs / 50kg Working Table Tilting Angle: 0-90° Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm Turntable Diameter: 12.4'' / 315mm Net Weight: 85.0 lbs / 38.6 kg Product Dimensions: 25.7'' x 19.8'' x 35.2'' / 652 x 502 x 895 mm"

• Smooth and Stable Rotation:Equipped with a 120W high-quality motor, this rotary welding positioner operates smoothly at speeds ranging from 0.5 to 6 RPM. It supports up to 55 lbs (25 kg) vertically and 110 lbs (50 kg) horizontally, ensuring stable and precise welding.
• Adjustable Tilt Worktable:The welding positioner features a turntable that tilts from 0 to 90 degrees. The hand wheel securely locks the table at the desired angle, while the self-locking worm gear ensures precise positioning of the workpiece during welding.
• Reliable Positioning and Clamping:Fitted with a 315mm KD200 three-jaw chuck, the positioner has a clamping range of 10-210mm and a supporting range of 80-190mm. This design prevents the weldment from shifting or falling during the welding process. It also includes a welding gun stand holder for added convenience.

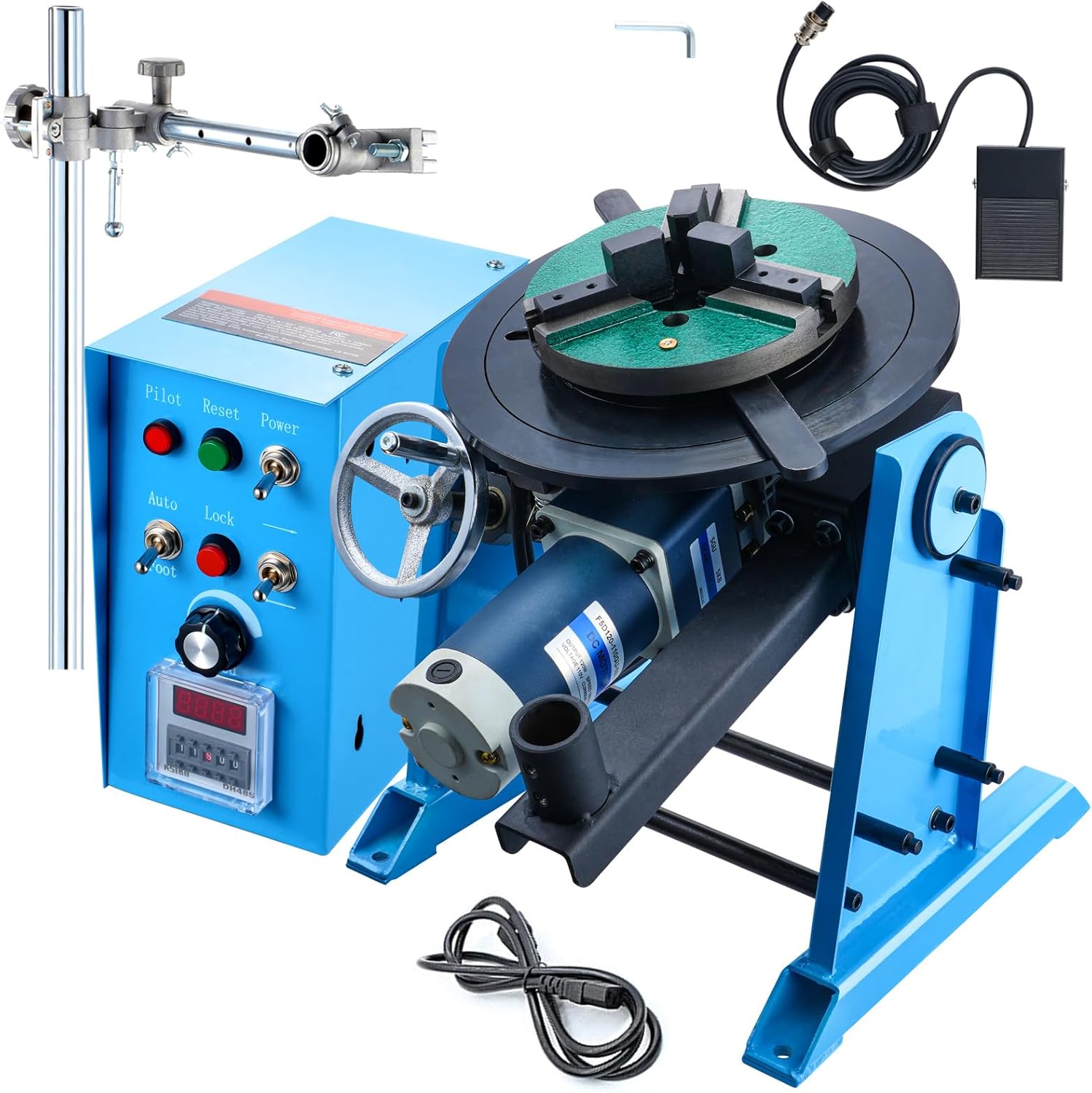

• Easy-to-Use Speed Control:This welding positioner offers a 0.5-6 RPM stepless speed adjustment, allowing users to control the rotation speed via an intuitive control box. The foot pedal switch makes controlling the 360-degree rotation effortless during operation.
• Versatile Application:Perfect for a variety of tasks including cutting, grinding, assembly, and testing. This positioning turntable can be mounted on a workbench or used with specialized tooling for manual or automatic welding, enhancing efficiency and accuracy in your welding projects.
